Spatial configurations in urban environmental analysis – The role of the heat island effect


  • Adriano Magliocco University of Genoa (Italy)
  • Gabriele Oneto University of Genoa (Italy)



urban form, climate change, urban morphology, complex systems, satellite analysis


The module, a system’s unit of dimension, is a concept that is still useful in analysing and planning cities. The Heat Island Effect is the occasion for inquiring about how to develop methodologies for reading and understanding urban systems by following reproducible and univocal principles. Starting from environmental temperature data, often representative of portions of squared urban grids, some spatial analytical methodologies are proposed and applied to two European cities: Genoa and Munich. Using the Local Climate Zones, a first map is defined at the urban level using a squared module. Subsequent maps question the infrastructural and morphological systems using graphs and tessellations. The urban planner that operates on complex systems can place these tools beside their analyses, verifying and examining urban environments.


Article info

Received: 08/09/2023; Revised: 16/10/2023; Accepted: 21/10/2023


Download data is not yet available.

Article Metrics Graph

Author Biographies

Adriano Magliocco, University of Genoa (Italy)

Architect and PhD, he is a Full Professor and vice-Director at the Department of Architecture and Design. His research topics revolve around environmental sustainability in architecture at different design scales.

Gabriele Oneto, University of Genoa (Italy)

Architect, he is a PhD Candidate at the Department of Architecture and Design. His main research interests include computational design, nature-based solutions, environmental analysis in urban systems and adaptation to climate change, focusing on digital strategies for the urban heat island effect and urban floodings, and complexity urban theory.


Abrar, R., Sarkar, S. K., Nishtha, K. T., Talukdar, S., Shahfahad, Rahman, A., Towfiqul Islam, A. R. M. and Mosavi, A. (2022), “Assessing the Spatial Mappin of Heat Vulnerability under Urban Heat Island (UHI) Effect in the Dhaka Metropolitan Area”, in Sustainability, vol. 14, issue 9, article 4945, pp. 1-24. [Online] Available at: [Accessed 18 October 2023].

Arribas-Bel, D. and Fleischmann, M. (2022), “Spatial Signatures – Understanding (urban) spaces through form and function”, in Habitat International, vol. 128, article 102641, pp. 1-11. [Online] Available at: [Accessed 18 October 2023].

Aslam, A. and Rana, I. A. (2022), “The use of local climate zones in the urban environment – A systematic review of data sources, methods, and themes”, in Urban Climate, vol. 42, article 101120, pp. 1-17. [Online] Available at: [Accessed 18 October 2023].

Barthélemy, M. (2004), “Betweenness Centrality in Large Complex Networks”, in The European Physical Journal B, vol. 38, issue 2, pp. 163-168. [Online] Available at: [Accessed 18 October 2023].

Boeing, G. (2017), “OSMnx – New methods for acquiring, constructing, analyzing, and visualizing complex street networks”, in Computers, Environment and Urban Systems, vol. 65, pp. 126-139. [Online] Available at: [Accessed 18 October 2023].

Caniggia, G. and Maffei, G. L. (1982), Composizione architettonica e tipologia edilizia – Lettura dell’edilizia di base, vol. 1, Marsilio, Venezia.

Demuzere, M., Kittner, J. and Bechtel, B. (2021), “LCZ Generator – A Web Application to Create Local Climate Zone Maps”, in Frontiers in Environmental Science, vol. 9, article 637455, pp. 1-18. [Online] Available at: [Accessed 18 October 2023].

Dong, P., Jiang, S., Zhan, W., Wang, C., Miao, S., Du, H., Li, J., Wang, S. and Jiang, L. (2021), “Diurnally continuous dynamics of surface urban heat island intensities of local climate zones with spatiotemporally enhanced satellite-derived land surface temperatures”, in Building and Environment, vol. 218, article 109105, pp. 1-12. [Online] Available at: [Accessed 18 October 2023].

Equere, V., Mirzaei, P. A. and Riffat, S. (2020), “Definition of a new morphological parameter to improve prediction of urban heat island”, in Sustainable Cities and Society, vol. 56, article 102021, pp. 1-18. [Online] Available at: [Accessed 18 October 2023].

Fleischmann, M. and Arribas-Bel, D. (2022), “Geographical characterisation of British urban form and function using the spatial signatures framework”, in Scientific Data, vol. 9, issue 1, article 546, pp. 1-15. [Online] Available at: [Accessed 18 October 2023].

Gallo, K. and Xian, G. (2014), “Application of spatially gridded temperature and land cover data sets for urban heat island analysis”, in Urban Climate, vol. 8, pp. 1-10. [Online] Available at: [Accessed 18 October 2023].

Graells-Garrido, E., Serra-Burriel, F., Rowe, F., Cucchietti, F. M. and Reyes, P. (2021), “A city of cities – Measuring how 15-minutes urban accessibility shapes human mobility in Barcelona”, in PLOS ONE, vol. 16, issue 5, pp. 1-21. [Online] Available at: [Accessed 18 October 2023].

Heaviside, C., Macintyre, H. and Vardoulakis, S. (2017), “The Urban Heat Island: Implications for Health in a Changing Environment”, in Current Environmental Health Reports, vol. 4, pp. 296-305. [Online] Available at: [Accessed 18 October 2023].

Hooyberghs, H., Berckmans, J., Lauwaet, D., Lefebre, F. and De Ridder, K. (2019), Climate variables for cities in Europe from 2008 to 2017, Copernicus Climate Change Service (C3S) Climate Data Store (CDS). [Online] Available at: [Accessed 18 October 2023].

Joint Research Centre of the European Commission, Veneri, P., Moreno-Monroy, A., Maffenini, L. and Schiavina, M. (2019), GHSL-OECD functional urban areas – Public release of GHS FUA, Publications Office of the European Union. [Online] Available at: [Accessed 18 October 2023].

Manoli, G., Fatichi, S., Schläpfer, M., Yu, K., Crowther, T. W., Meili, N., Burlando, P., Katul, G. G. and Bou-Zeid, E. (2019), “Magnitude of urban heat islands largely explained by climate and population”, in Nature, vol. 573, pp. 55-60. [Online] Available at: [Accessed 18 October 2023].

Mohamed, M., Othman, A., Abotalib, A. Z. and Majrashi, A. (2021), “Urban heat island effects on megacities in desert environments using spatial network analysis and remote sensing data – A case study from western Saudi Arabia”, in Remote Sensing, vol. 13, issue 10, article 1941, pp. 1-16. [Online] Available at: [Accessed 18 October 2023].

Muratori, S. (1960), Studi per una operante storia urbana di Venezia, Istituto Poligrafico dello Stato, Libreria dello Stato, Roma.

Royal Meteorological Society (2017), “Urban Heat Islands”, in metMatters, 01/10/2017. [Online] Available at: [Accessed 18 October 2023].

Rozenstein, O., Qin, Z., Derimian, Y. and Karnieli, A. (2014), “Derivation of Land Surface Temperature for Landsat-8 TIRS Using a Split Window Algorithm”, in Sensors, vol. 14, issue 4, pp. 5768-5780. [Online] Available at: [Accessed 18 October 2023].

Sangiorgio, V., Fiorito, F. and Santamouris, M. (2020), “Development of a holistic urban heat island evaluation methodology”, in Scientific Reports, vol. 10, issue 1, article 17913, pp. 1-13. [Online] Available at: [Accessed 18 October 2023].

Stewart, I. D. (2011), Redefining the urban heat island, PhD Thesis, University of British Columbia Theses and Dissertations. [Online] Available at: [Accessed 18 October 2023].

Stewart, I. D. and Oke, T. R. (2012), “Local Climate Zones for Urban Temperature Studies”, in Bulletin of the American Meteorological Society, vol. 93, issue 12, pp. 1879-1900. [Online] Available at: [Accessed 18 October 2023].

Tuholske, C., Caylor, K., Funk, C., Verdin, A., Sweeney, S., Grace, K., Peterson, P. and Evans, T. (2021), “Global urban population exposure to extreme heat”, in Proceedings of the National Academy of Sciences, vol. 118, issue 41, article e2024792118, pp. 1-9. [Online] Available at: [Accessed 18 October 2023].

Valmassoi, A. and Keller, J. D. (2021), “How to visualize the Urban Heat Island in Gridded Datasets?”, in Advances in Sciences and Research, vol. 18, pp. 41-49. [Online] Available at: [Accessed 18 October 2023].

van der Hoeven, F. and Wandl, A. (2015), Rotterdam, TU Delft Architecture and the Built Environment, Delft.

Wang, Z.-H. (2022), “Reconceptualizing urban heat island – Beyond the urban-rural dichotomy”, in Sustainable Cities and Society, vol. 77, article 103581, pp. 1-9. [Online] Available at: [Accessed 18 October 2023].

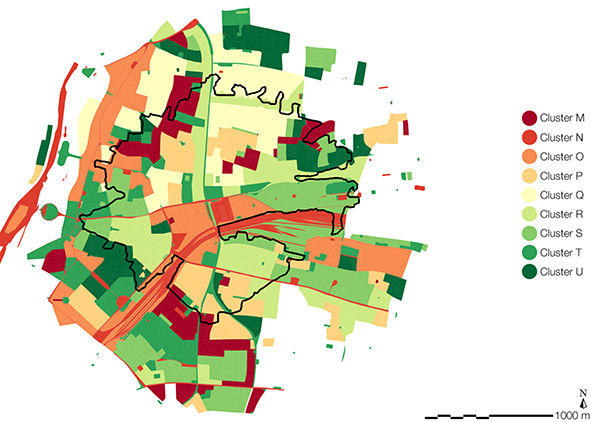

Munich case study: LST Spatial Signatures over ‘enclosed tessellation’ (credit: G. Oneto, 2023). AGATHÓN 14 | 2023
